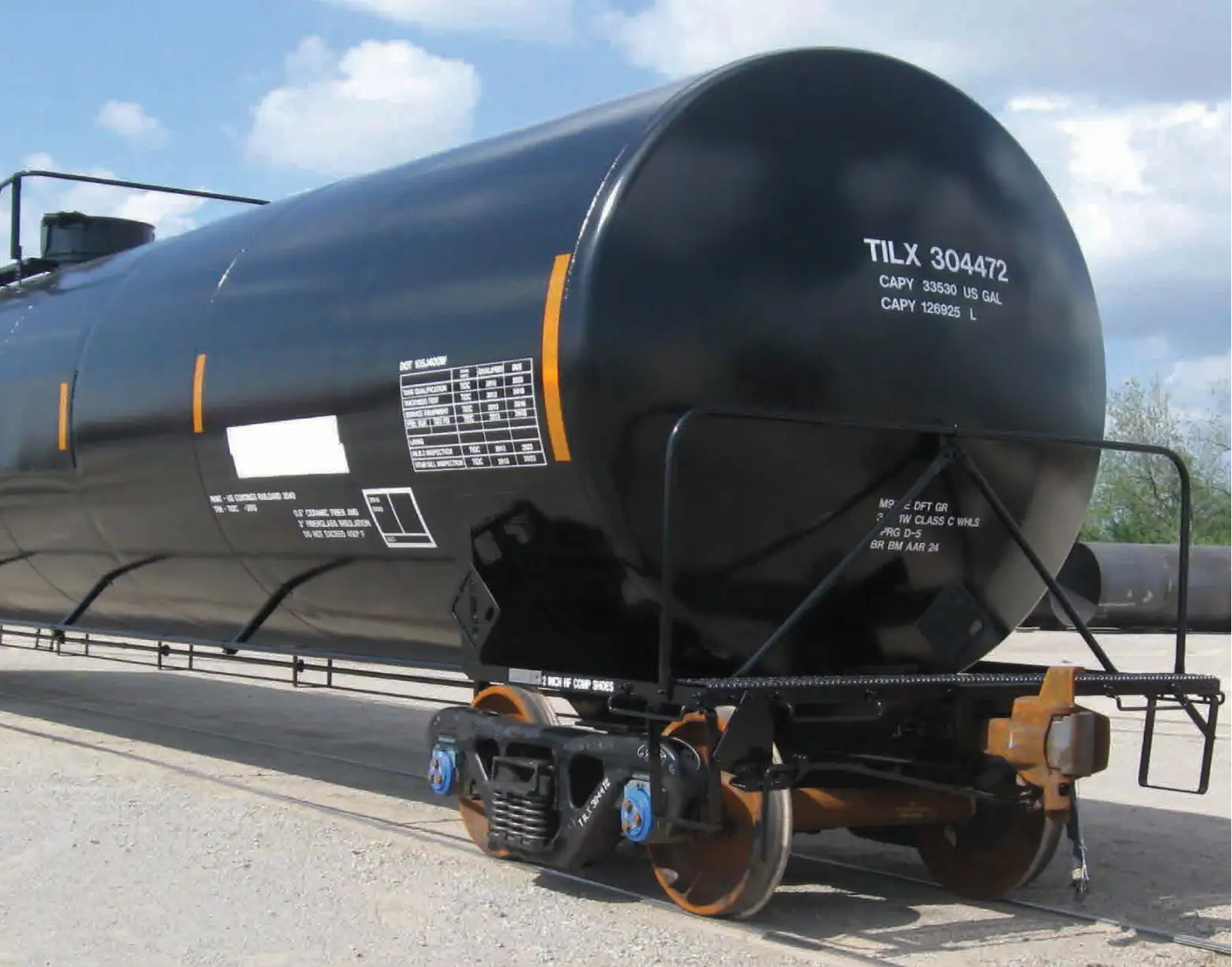

33,560 GALLON PRESSURE TANK CAR
ABOUT THIS RAILCAR
TrinityRail’s® extensive railcar product portfolio has a complete line of tank cars including a 263,000 lb. gross rail load, pressure tank car with a shell capacity of 33,560 gallons.
SPECIFICATIONS
Shell Capacity
33,560 gal.
Allowable Weight Per Gallon
N/A
Stenciled Specification
DOT105J400W
Sized For
Propylene
Tank Slope
Straight Cylinder
Shell & Head Thickness
0.714″
Clearance Diagram
Plate “C”
Length Over Coupler Pulling Faces
68′- 10″
Length Between Truck Centers
55′ – 3 ó”
Extreme Height
15′ – 5″
Extreme Width Over Ladder Rungs
10′ – 7″
Estimated Lightweight
110,100 lbs.
Gross Rail Load
263,000 lbs.
Manway
None
Fittings
Nozzle 20″ Inside Diameter, A516 Gr 70 Norm Insert Nozzle w/Nozzle Repad and Stiffeners
Bottom Outlet Valve
None
Coils
None
Insulation Type
3″ Fiberglass Over 1/2″ Ceramic Fiber
Top Platform
Divided Type 9 ó” Wide x 22′ 0 .” Long Anti-skid Between Boards
FEATURES
Shell Material and Tank Head Impact Tested
Strength, ductility, and low temperature (-30 degrees F) impact properties are verified to insure safe containment of lading. TrinityRail’s steel specification exceeds minimum AAR Requirements.
Tamper Resistant Protective Housing and Hinge Cover
Improves car security by preventing unauthorized access.
Patented All-Plate Stub Sill
Provides a strong head brace with full penetration welds, which minimizes fatigue cracking.
Insulation Jackets
No weld seam at top centerline, which enables the tank to shed dirt and moisture.
Plank Grating
Reduces lightweight, provides superior traction, and there are no welds to crack.
Decals and Reflection Material
Decals improve appearance. Yellow reflection material DOT approved.
Component Availability
Replacement components are available to minimize out of service time.
