30,300 Gallon Non-Coiled, Insulated Tank Car
ABOUT THIS RAILCAR

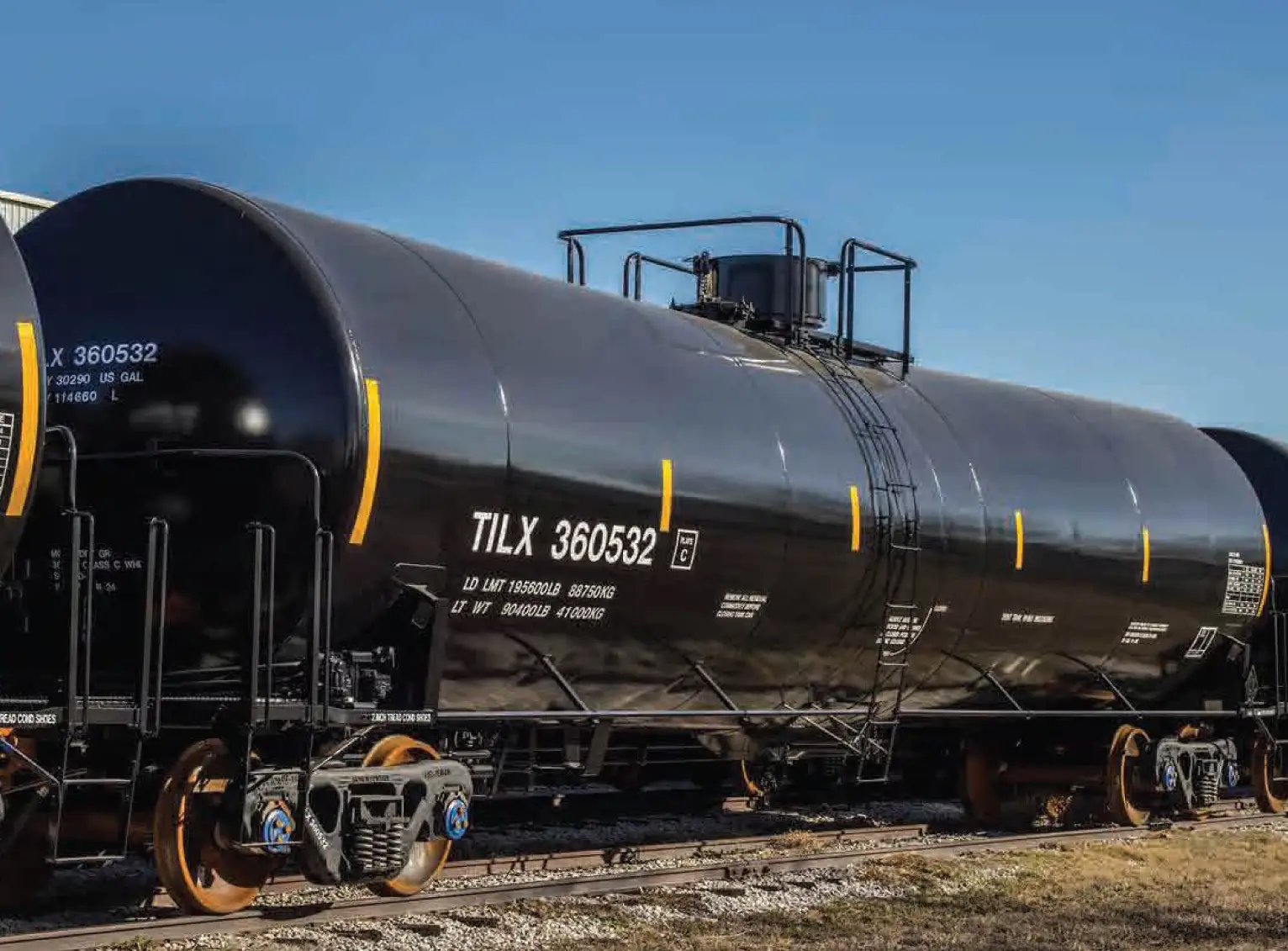

TrinityRail® is a top provider of railcars, including a 286,000 lb. gross rail load, crude oil tank car with a shell capacity of 30,300 gallons. This vehicle features a unique jacket head and a carbon steel shell. Additionally, it has a ¾-inch thick wall protective housing for safeguarding the top fittings.
SPECIFICATIONS
Shell Capacity
30,300 gal.
Allowable Weight Per Gallon at 2%
6.58 lbs./gal.
Stenciled Specification
DOT117A100W
Sized For
Petroleum Crude Oil, Packing Group I or II
Tank Slope
0.2181 in./ft.
Shell & Head Thickness
9/16″
Clearance Diagram
Plate “C”
Length Over Coupler Pulling Faces
59′-9″
Length Between Truck Centers
46′-2 1/2″
Extreme Height
15′ – 6″
Extreme Width
10′ – 8″
Estimated Lightweight
90,500 lbs.
Gross Rail Load
286,000 lbs.
Manway
20″ Inside Diameter, 316L SS Insert Nozzle w/Reinforcing Pad
Fittings Nozzle
22″ Inside Diameter CS Insert Nozzle w/ CS Bolted Cover Plate w/Reinforcing Pad & Sti eners
Bottom Outlet Valve
10 5/8″ BC Mount, 4″ External Ball, SS Body, SS Trim w/Disengageable Handle
Coils
None
Insulation Type
1/2″ Ceramic Fiber (Thermal Protection)
Top Platform
Divided CS Plank, 9 1/2″ x 8′ w/ Side Ladders, Grounding Studs & Lugs. Anti-skid Between Boards
FEATURES
Jacket Head/Shell
.5″ carbon steel jacket head shield. 11 gauge carbon steel jacket shell.
Top Fittings Protection
.75″ thick wall protective housing
Combination Saddle-Sump
Provides complete drainage directly into the bottom outlet valve.
Patented All-Plate Stub Sill
Provides a strong head brace with full penetration welds, which minimizes fatigue cracking.
Insulation Jackets
No weld seam at top centerline, which enables the tank to shed dirt and moisture.
Decals and Reflection Material
Decals improve appearance. Yellow reflection material DOT approved.
Component Availability
Replacement components are available to minimize out-of-service time.
