23,589 GALLON GENERAL SERVICE TANK CAR
ABOUT THIS RAILCAR

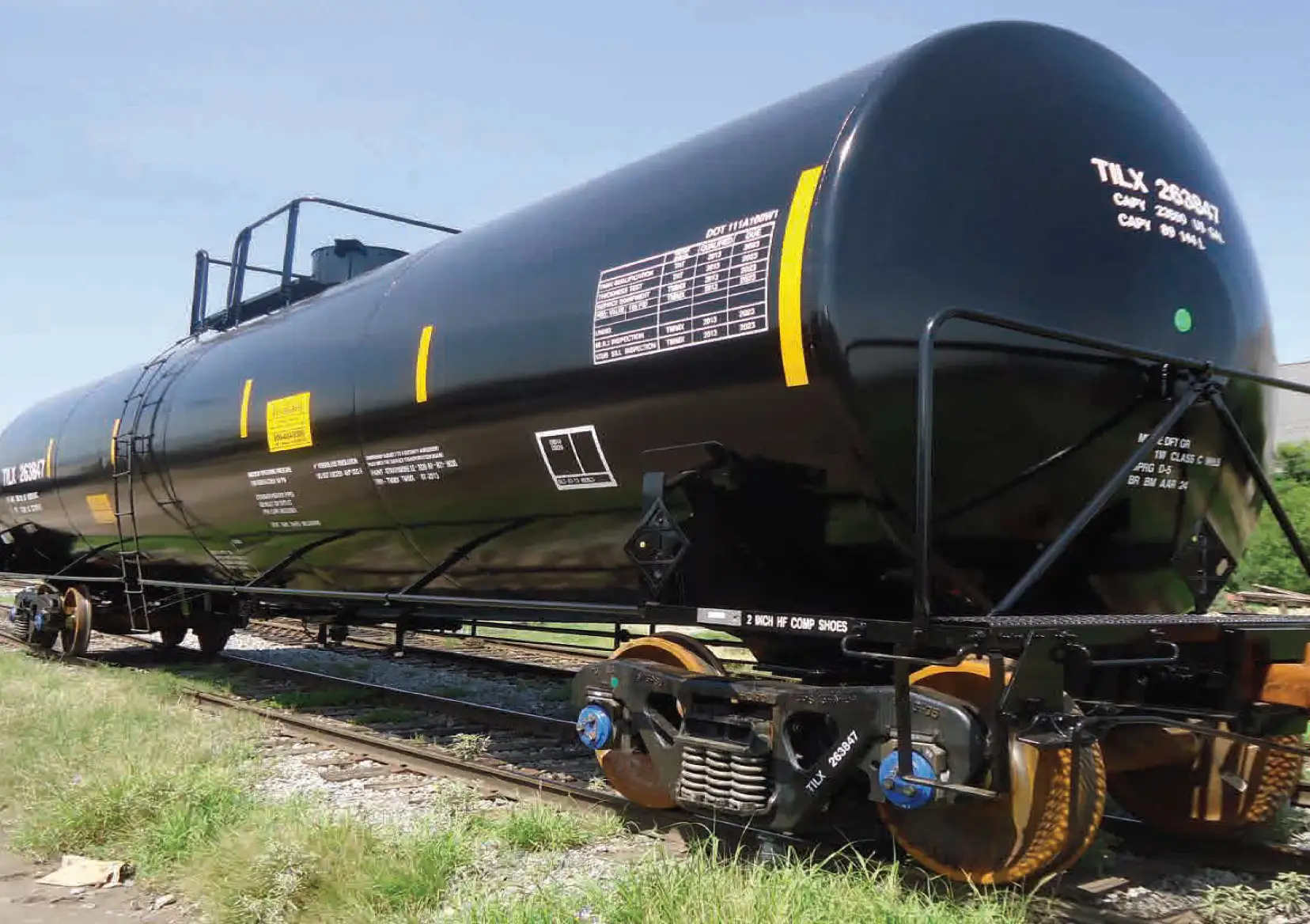

TrinityRail’s® extensive railcar product portfolio has a complete line of tank cars including a 263,000 lb. gross rail load, general service tank car with a shell capacity of 23,589 gallons.
SPECIFICATIONS
Shell Capacity
23,589 gal.
Allowable Weight Per Gallon
8.15 lbs.
Stenciled Specification
DOT111A100W1
Sized For
General Service
Tank Slope
0.2181 in./ft.
Shell & Head Thickness
0.4375″
Clearance Diagram
Plate “B”
Length Over Coupler Pulling Faces
55′-4″
Length Between Truck Centers
41′-9″
Extreme Height
15′
Extreme Width
10′-5″
Estimated Lightweight
74,600 lbs.
Gross Rail Load
263,000 lbs.
Manway
20” Inside Diameter, 316L SS Insert Nozzle, w/ Reinforcement Pad
Fittings Nozzle
20” Inside Diameter, CS Insert Nozzle w/ Bolted CS Cover Plate w/ Reinforcement Pad
Bottom Outlet Valve
4″ External Ball Valve w/ SS Body
Coils
None
Insulation Type
None
Top Platform
Divided, CS Plank, Grounding Studs, 9 1/2″ x 8′ w/ Side Ladders
FEATURES
Flexibility
Flexible to reconfigure for Packing Groups I and II service if not originally equipped.
Combination Saddle-Sump
Provides complete drainage directly into the bottom outlet valve.
Patented All Plate Stub Sill
Provides a strong head brace with full penetration welds, which minimizes fatigue cracking.
Insulation Jackets
No weld seam at top centerline, which enables the tank to shed dirt and moisture.
Full-Port Bottom Outlet Valves
Quicker unloading capabilities. Valves can be “rodded” in cases of product solidification.
Plank Grating
Reduces lightweight, provides superior traction, and there are no welds to crack.
Decals and Reflection Material
Decals improve appearance. Yellow reflection material DOT approved.
Component Availability
Replacement components are available to minimize out-of-service time.
