20,413 General Service Tank Car
ABOUT THIS RAILCAR

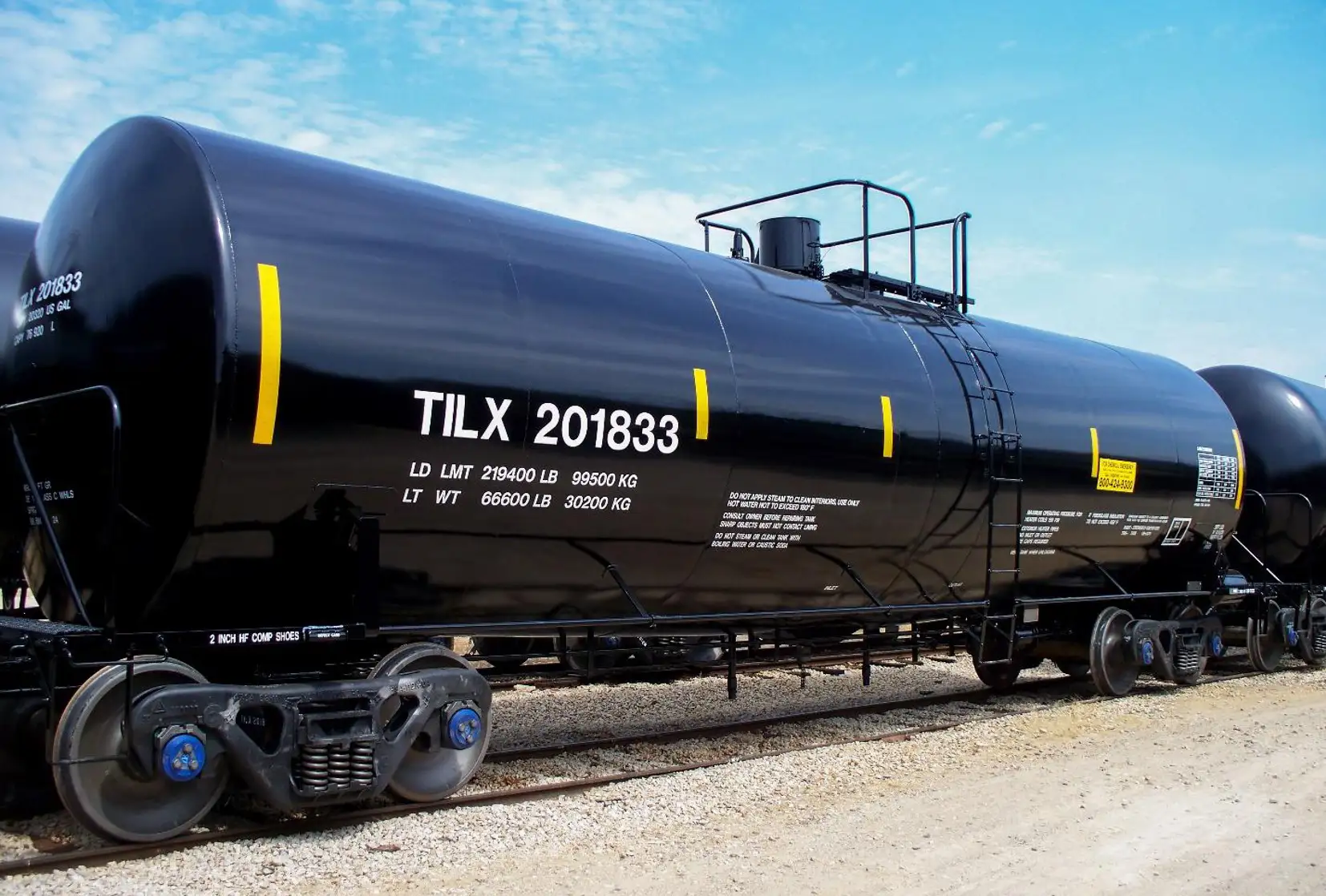

TrinityRail® is a top provider of railcars, including 263,000 lb. and 286,000 gross rail loads, coiled and insulated general service tank cars with a shell capacity of 20,413 gallons. General service cars allow for the most flexibility, as they can hold acid, bleach, and other free-flowing products. The tank design has no weld seam at the top centerline of the car, which keeps dirt and moisture from building up and causing corrosion or damage.
SPECIFICATIONS
Shell Capacity
20,413 gal.
Allowable Weight/Gallon
9.69 lbs
Stenciled Specification
DOT111A100W1
Sized For
General Service
Tank Slope
0.2181 in./ft
Shell & Head Thickness
7/16″
Clearance Diagram
Plate “B”
Length Over Coupler Pulling Faces
48′-10 1/4″
Length Between Truck Centers
35′-3 3/4″
Extreme Height
15’ – 1″
Extreme Width
10’ – 5”
Estimated Lightweight
69,100 lbs.
Gross Rail Load
263,000 lbs.
Manway
20″ Diameter, 316L SS Insert Nozzle w/ Tank Reinforcement
Fittings Nozzle
20″ Inside Diameter, CS Insert Nozzle w/ CS Bolted Cover Plate w/ Tank Reinforcement Pad
Bottom Outlet Valve
4″ External Ball
Coils
8″ Half Oval 12 Line Exterior Serpentine
Insulation Type
4” Fiberglass
Top Platform
Divided Type CS Plank, Grounding Studs, 9 1⁄2″ x 8′ w/ Side Ladders
FEATURES
Combination Saddle-Sump
Provides complete drainage directly into the bottom outlet valve.
Patented All-Plate Stub Sill
Sill Provides a strong head brace with full penetration welds, which minimizes fatigue cracking.
Insulation Jackets
No weld seam at top centerline, which enables the tank to shed dirt and moisture.
Full-Port Bottom Outlet Valves
Quicker unloading capabilities. Valves can be “rodded” in cases of product solidification.
Plank Grating
Reduces lightweight, provides superior traction, and there are no welds to crack.
Decals and Reflection Material
Decals improve appearance. Yellow reflection material DOT approved.
Component Availability
Replacement components are available to minimize out-of-service time.
