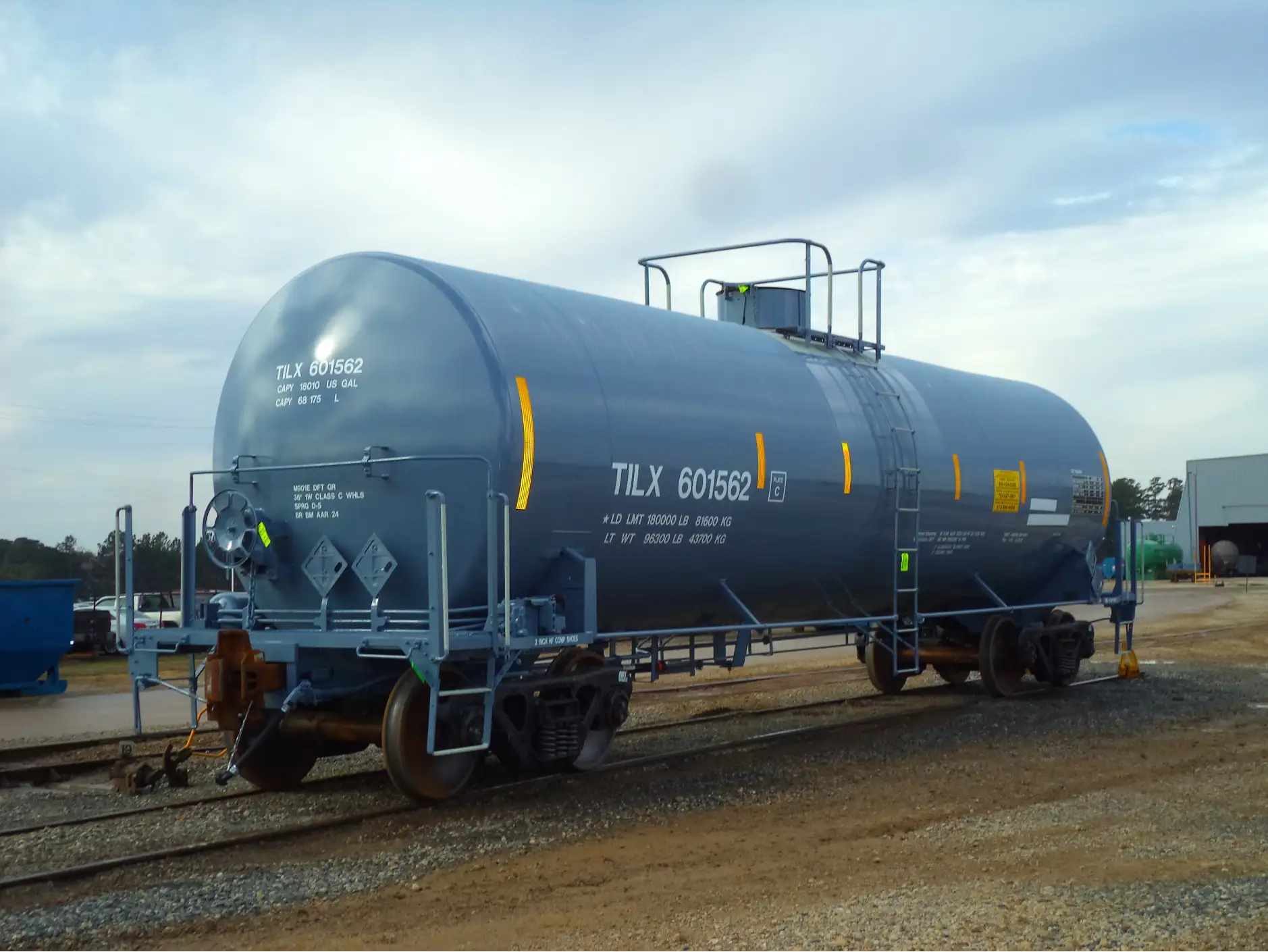

18,063 Gallon Chlorine Tank Car
ABOUT THIS RAILCAR
TrinityRail® stands out as a leading supplier of railcars, including a 286,000 lb. gross rail load chlorine tank car with a capacity of 18,063 gallons. The car is designed with superior top fittings protection featuring a 1¼” thick protective cover for improved rollover safety. Additionally, it comes with insulated jackets and a seamless design on the upper centerline to prevent dirt and moisture accumulation that can lead to corrosion or damage.
SPECIFICATIONS
Shell Capacity
18,063 gal.
Stenciled Specification
DOT105J600I
Sized For
Chlorine
Tank Slope
Straight Cylinder
Shell & Head Thickness
0.981″ / 1.136″
Length Over Coupler Pulling Faces
46′ – 11.5″
Length Between Truck Centers
33′ – 5″
Clearance Diagram
Plate “C”
Extreme Height
15′ – 0 5/8″
Extreme Width
10′ – 5″
Estimated Lightweight
96,200 lbs.
Gross Rail Load
286,000 lbs.
Manway
None
Fittings Nozzle
20″ I.D., Bolting Flange w/ Reinforcement Pad
Bottom Outlet Valve
None
Coils
None
Insulation Type
2″ Fiberglass Over 2″ Ceramic Fiber
Top Platform
Divided, CS Plank, Grounding Studs, 9.5″ x 6′ w/ Side Ladders
FEATURES
Patented All-Plate Stub Sill
Provides a strong head brace with full penetration welds, which minimizes fatigue cracking.
Insulation Jackets
No weld seam at top centerline, which enables the tank to shed dirt and moisture.
Plank Grating
Reduces lightweight, provides superior traction, and there are no welds to crack.
Decals and Reflection Material
Decals improve appearance. Yellow reflection material DOT approved.
Top Fittings Protection
1 ¼” thick protective housing for enhanced rollover protection.
Component Availability
Replacement components are available to minimize out-of-service time.
