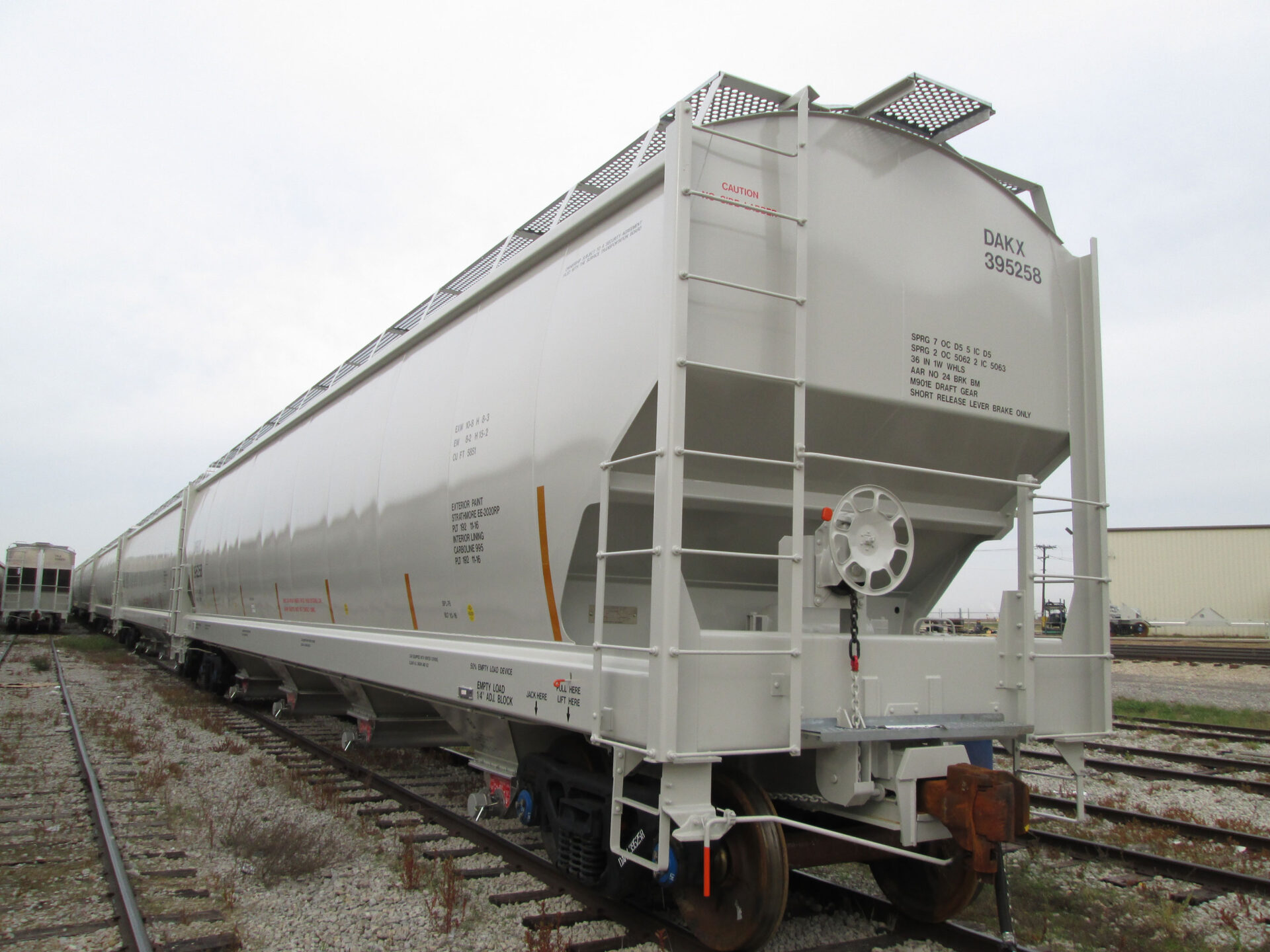

5,851 Cubic Foot Pneumatic Discharge Covered Hopper
ABOUT THIS RAILCAR
Pneumatic discharge covered hoppers have interiors specially prepared for contamination-free transport of plastic pellets, resins or flakes. Floor slopes and coatings are optimized so that the commodity flows smoothly and promotes complete unloading.
TrinityRail® is a leading supplier of covered hoppers including a 5,851 cubic foot pneumatic discharge covered hopper for the efficient shipment of plastic pellets. The structural gate frame offers superior strength while helping to prevent bagging and product entrapment within the car.
SPECIFICATIONS (APPROXIMATE)
Length Over Coupler Pulling Faces
64′-10.5″
Length Between Truck Centers
51′-0″
Inside Length
60′-6.625″
Inside Width
10′-2.25″
Truck Wheel Base
5′-10″
Extreme Height
15′-6″
Extreme Width
10′-2.625″
Estimated Lightweight
65,500 lbs.
Estimated Load Limit Based on 286,000 lbs. Gross Rail
220,500 lbs.
Hatch Opening
20″ dia.
Discharge Frame
63″ x 27.375″
AAR Clearance
Plate C
Cubic Capacity
5,851 cu.ft.
FEATURES
Round Sides and Roof
Promotes better loading efficiency while maximizing cubic capacity.
Stub Center Sill
Offers lower weight and unobstructed discharge of product.
High Side Sill
Enables easier access to the discharge gate outlets.
Floor/Hopper Supports
Constructed to prevent bagging.
Steel Underframe
Provides strength and durability.
End Sill/Shear Plate
Provides strength and durability.
Structural Gate Frame
Offers superior strength while helping to prevent bagging and pellet entrapment.
Loading Hatches
This car has 20” low-profile hatches with airtight gaskets and hatch rings made of stainless steel. The covers have a toggle lock that secures them tightly with the gasket. Options are available for 6, 8, or 10 hatches.
Interior Lining
Round side and smooth interior allows for ease of lining and enhanced coating performance, if required.
EDSCO Pro-Series® Low-Profile Gate
The EDSCO Pro-Series® Low-Profile Gate promotes efficient and reliable commodity unloading. It features a single-handle operation for easy use and a no-ledge design to prevent material blockages. The gate’s sturdy construction reduces maintenance over time.
