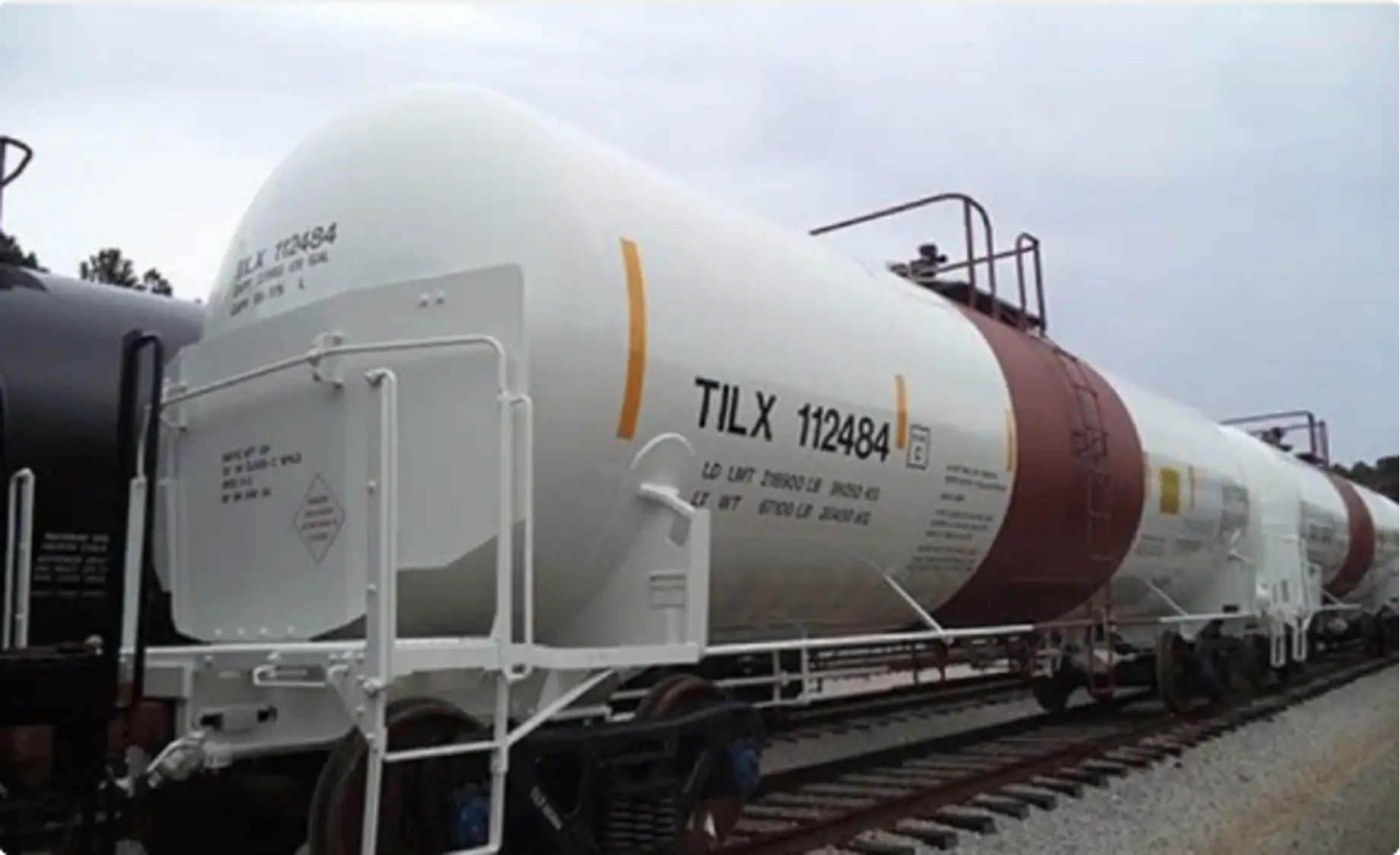

22,667 Gallon Hydrochloric Acid Tank Car
ABOUT THIS RAILCAR
TrinityRail® is a top provider of railcars, including a 286,000 lb. gross rail load, hydrochloric acid tank car with a shell capacity of 22,667 gallons. The tank has an optimized design for application of rubber lining, and its patented all-plate stub sill provides a strong head brace with full-penetration welds that minimize fatigue cracking.
SPECIFICATIONS
Shell Capacity
22,667 gal.
Allowable Weight/Gallon
9.61 lbs
Stenciled Specification
DOT111A100W5
Sized For
Hydrochloric Acid
Tank Slope
Straight Cylinder
Shell & Head Thickness
1/2″
Clearance Diagram
Plate “B”
Length Over Coupler Pulling Faces
48′-10″
Length Between Truck Centers
35′-3 1/2″
Extreme Height
14′ – 10 7/8″
Extreme Width
10′ – 5″
Estimated Lightweight
69,900 lbs.
Gross Rail Load
286,000 lbs.
Manway
None
Fittings Nozzle
20” Inside Diameter, CS Insert Nozzle, (2) SS Grounding Lugs, (4) Drain Holes w/ Reinforcememt Pad
Sump
None
Coils
None
Insulation Type
None
Top Platform
Divided Type CS Plank, Grounding Studs, 9 1/2” x 6’ w/ Side Ladders
FEATURES
Rubber Lining
Optimized design for application of rubber lining.
Patented All Plate Stub Sill
Provides a strong head brace with full penetration welds, which minimizes fatigue cracking.
Plank Grating
Reduces lightweight, provides superior traction, and there are no welds to crack.
Decals and Reflection Material
Decals improve appearance. Yellow reflection material DOT approved.
Component Availability
Replacement components are available to minimize out-of-service time.
